NVRs (network video recorder) and DVRs (digital video recorder) are what you use to manage, view, and store surveillance videos. Available with a variety of software and hard drive sizes, NVRs and DVRs make it easy to save and review videos. Which one you need, and how it works, depends on having CCTV or IP surveillance cameras.

HOME PAGE

Overview

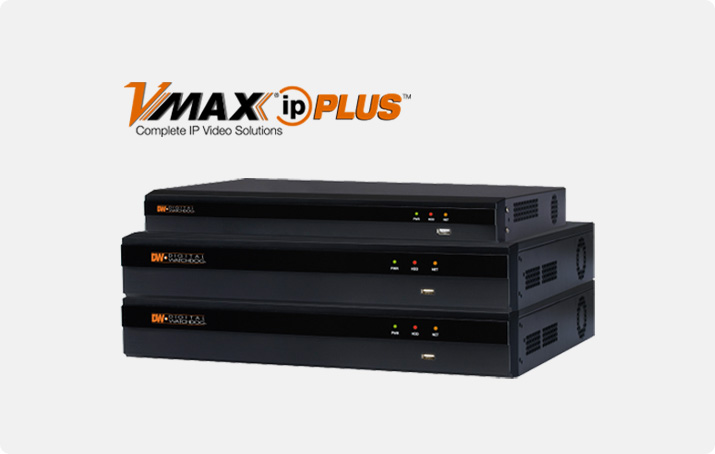

VMAX® IP Plus™ NVR

The VMAX® IP Plus™ is an easy to use PoE NVR that allows you to go from power up to monitoring in less than three minutes! The NVR offers unique features such as CCIP™ camera encryption and internal systems diagnostics, keeping your system healthy, secure and up to date. Combine with the DW Witness™ app to turn the camera on a smartphone or tablet into a surveillance camera that can be viewed and recorded on the NVR. Combine your VMAX IP Plus with DW Spot™ Monitoring Modules for public view monitors. Each NVR can support up to 16 remote connections and share a maximum of 64 channels simultaneously.

VIEW ALL PRODUCTS

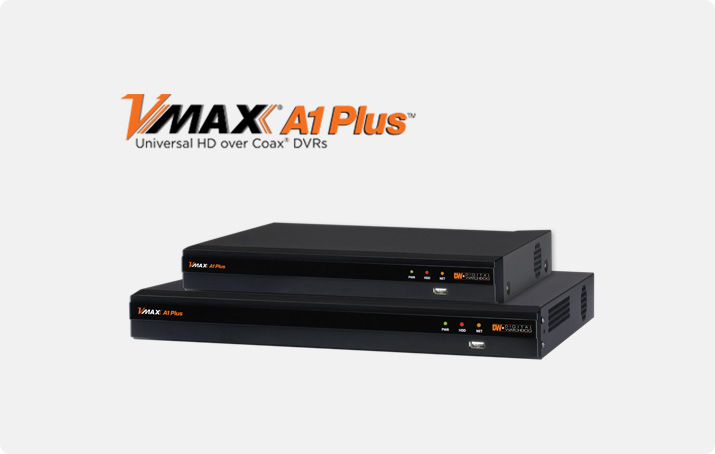

VMAX® A1 Plus™ DVR

VMAX® A1 Plus™ DVRs support HD-Analog and HD-TVI signals up to 5MP, and CVBS up to 960H. The DVRs offer a seamless upgrade to HD resolution for new ROI from existing coaxial infrastructure. The VMAX® A1 Plus™ can record 1080p video at real-time 30fps. Up the Coax (UTC) remote configuration is available with all compatible cameras. The VMAX® A1 Plus™ DVRs are available in 4-, 8- and 16-channel models with up to 20TB of storage.

VIEW ALL PRODUCTS

Key Technology

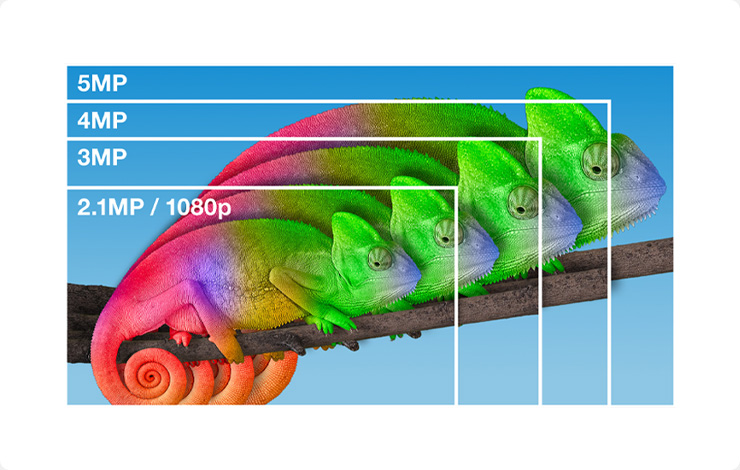

Megapixel resolution

DW’s technology delivers crystal-clear images in resolutions up to 5MP.
Higher resolution delivers forensic details when zooming into the camera’s field of view.

VIEW ALL PRODUCTS

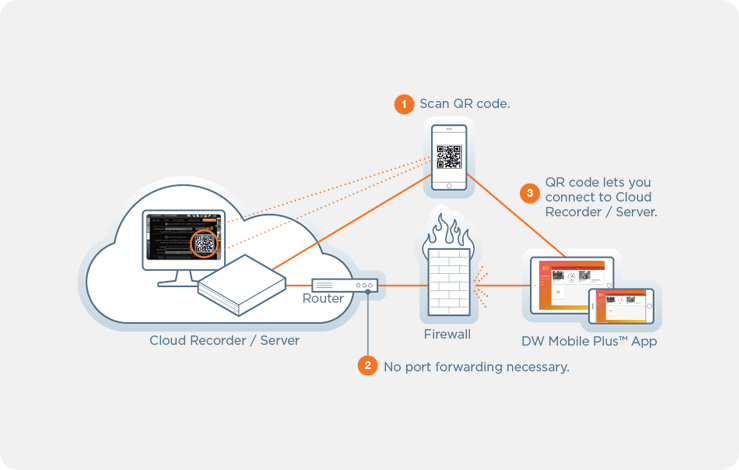

PathFinder™

Easy and secure peer-to-peer remote connection without opening ports.

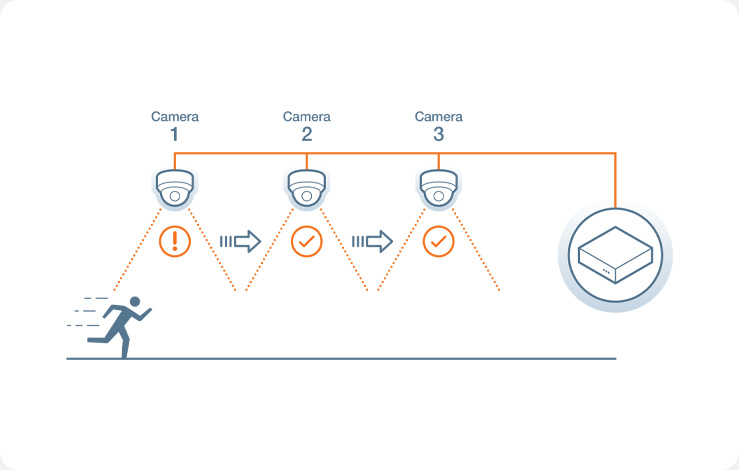

Camera Group Recording

Designate a group of cameras to respond to an alert from one camera.

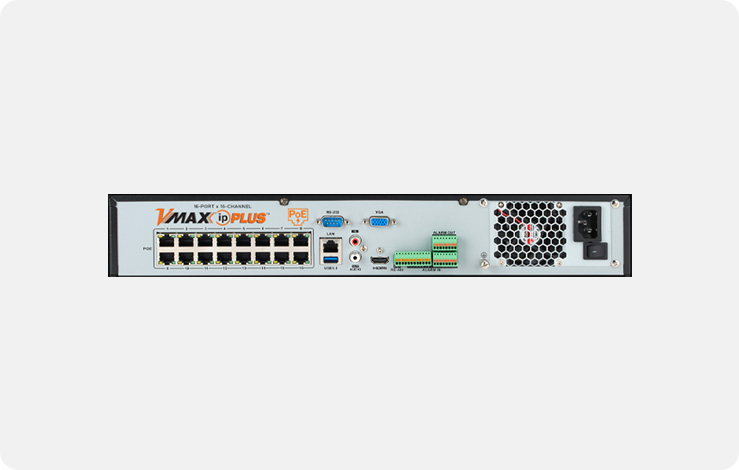

Plug and play with local PoE ports_NVR

The VMAX® IP Plus™ NVRs can power up to 16 IP cameras locally from the system itself, no need for PoE switches and additional power sources.

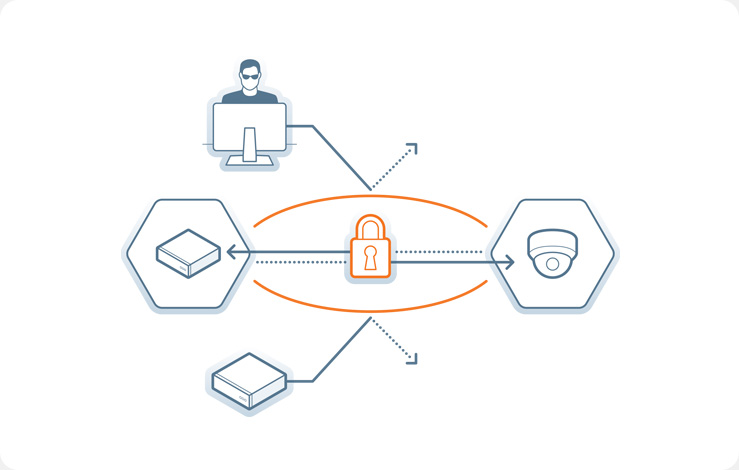

CCIP™_NVR

DW’s CCIP (Closed Circuit Internet Protocol) camera and recorder encryption is an exclusive DW technology that provides an encrypted RTSP stream between the camera and the recorder , assuring users their cameras, recorders, and data are secured. The feature is available for all MEGApix® single-sensor IP cameras as well as VMAX IP Plus NVRs.

The VMAX IP Plus system sends a request for an encrypt stream from the camera, which in return encrypts its RTSP stream a second time, over the user ID and password. The secured and encrypted RTSP stream can only be read by the requesting NVR.

See All Compliant Cameras.

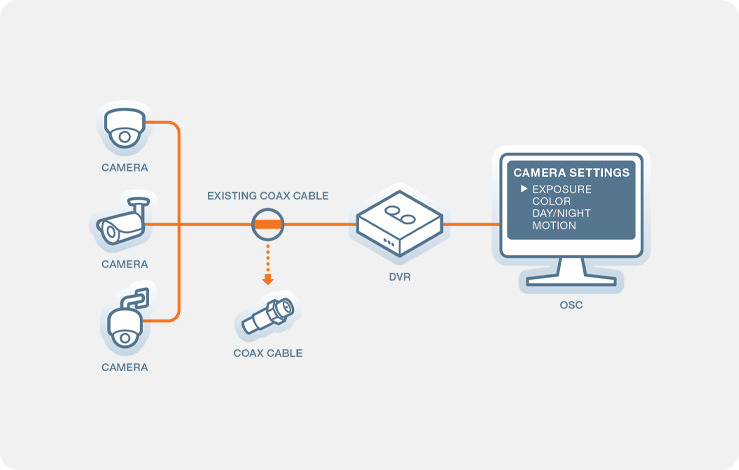

Up the Coax (UTC) Communications_DVR

Get the ladder! Make adjustments to your cameras from DVR.

System Monitoring
A real-time graphical representation of all system connections. Receive connection alerts via email or text.
Thumbnail Search
Find video fast by clicking on thumbnails by the date, hour and minute.
3-minute installation
Get your NVR from the box to monitoring and recording in under 3 mintues!
Channel Swap
Swap a camera’s channel assignment without changing the cable connections.
