Network Cameras
NST11-75L

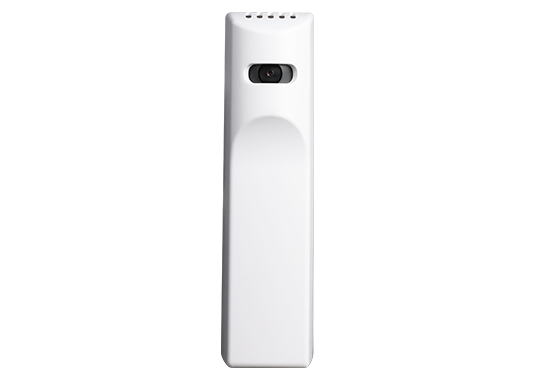

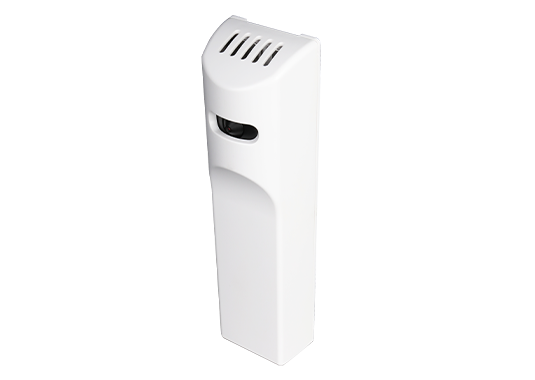

AI 5M IP Door Jamb Bar Camera
Edge based
AI camera
Pin Hole
Lens Type
Door Jamb
Case Type

Key Feature

  • 5MP AI Camera
  • Supports Intelligent Video Analysis Events (Face Recognition/Line Crossing/Intrusion/Queue Management..)
  • Maximum Resolution 2592 (Horizontal) X 1944 (Vertical) / 30fps
  • Horizontal Field of View 88 degrees (3.7mm Lens)
  • Backlight Compensation (WDR)
  • SD/SDHC/SDXC Memory Slot
  • Adjustable Lens Position
  • PoE IEEE 802.3af/Class2

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 5.17M(STV2)
  3. CMOS
Channels
1
Total Pixel 2608(H) X 1984(V)
Max Resolution 2592(H) X 1944(V)
MIN. Illumination
COLOR: 0.13Lux
Only installer Video Output No
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
3.7mm
Aperture
F2.5
Lens Type Fixed
IRIS Type Auto Exposure
Horizontal Angle
D : 115°, H : 87.6, V : 61.6°
Pan / Tilt / Zoom
Zoom : Fixed
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Auto Gain Control (AGC) Auto
Day & Night S/W Day & Night
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
LEDs Non-IR
LED Distance No
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic Yes
Video analytics
Intrusion Detection
Zones&lines
Tamper Detection
Appear Filter
Disappear Filter
Dwell Filter
Enter Filter
Exit Filter
Stopped Filter
Counting
Counting Lines
Object Color
Direction Filter
Logical Rules
Tailgating Filter
DL People Tracker
DL Object Tracker
Metadata
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 2592x1944/2560x1440/1920x1080/1280x720/800x600/704x576/704x480/640x480/640x360/352x288/352x240
H.264 : 2592x1944/2560x1440/1920x1080/1280x720/800x600/704x576/704x480/640x480/640x360/352x288/352x240
MJPEG : 1920x1080/1280x720/800x600/768x432/704x576/704x480/640x480/640x360/352x288/352x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~10Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression No
Special Feature
Dynamic ROI(Region of Interest)
I/O & Event
Audio In / Out No
Alarm In / Out No
Mic No
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
SD Card
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class2
Power consumption
  1. DC Max 4.1W
  2. PoE Max 5.8W
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing No
IP Rating No
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model ST11
Housing
  1. Indoor
  2. Specialty
Material Plastic
Color White
Dimensions (W x D x H)
50.3mm
190.0mm
Weight
0.4kg
