NSF1-58-R
DWC-MPBW8Wi2TW

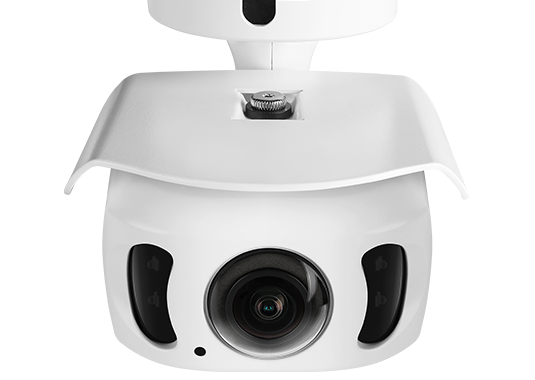

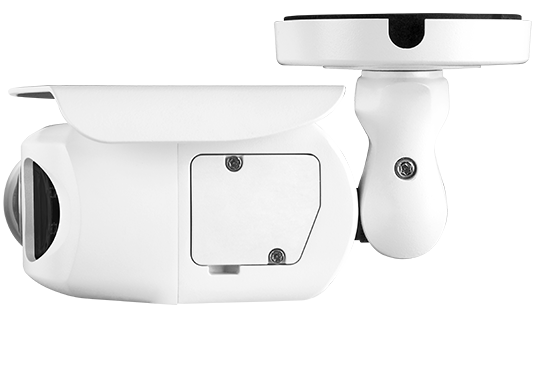

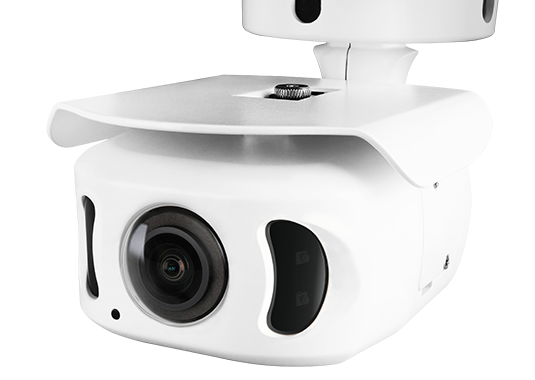

4K IP IR Pano Bullet
8 MP
Image Resolution
180 ˚
Panoramic View
IP67 rated
Compliance

Key Feature

  • Fluid integration way
  • Optimized Multiple Profile Streaming
  • ROI(Region of Interest)
  • Advanced built in ISP

Specifications

PDF
Video
Image Sensor
  1. 1/1.8”
  2. 8M
  3. CMOS
Channels
1
Total Pixel 3952(H) x 2320(V)
Max Resolution 3840(H) x 2160(V)
MIN. Illumination
0.29Lux
0Lux with IR (F2.8)
Only installer Video Output 1 [CVBS 1.0V p-p (75Ω)]
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
2.3mm
Aperture
F2.8
Lens Type Fixed
IRIS Type Auto Exposure
Horizontal Angle
H:175° / V:80°
Pan / Tilt / Zoom
Pan:
Tilt :
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Yes
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR (2x)
Dynamic Range 120dB or above
IR LEDs H4IR
IR Distance 70ft
Privacy Zone No
Intelligent Video Analytic
AI Intelligent Video Analytic Yes
IVA License
Intrusion
Line Crossing
Counting Line
Loitering
Enter
Exit
Tamper
IVA+ License
Object Removed
Tailgating
Direction
Stopped
Appear
Disappear
Abandoned
VCA Presence/Presence AI
Zones
Tamper Detection
Presence/DL-Filter
VCA Count/Count AI
Zones
Tamper Detection
Counting
Counting Lines
Presence
Dwell Filter/Direction Filter
DL People
Tracker
VCA Pro/Pro AI
Zones
Tamper Detection
Presence
Counting
Counting Lines
Appear Filter
Disappear Filter
Stopped Filter
Enter Filter
Exit Filter
Tail Gating
Abandoned Object Filter
Meta Data
Logical Rules
Direction Filter/DL Filter
DL People Tracker
DL Object Tracker
Encoder (video & audio)
Video Compression
H.265
H.264
MJPEG
Support Resolution
H.265 : 3840x2160/2560x1440/1920x1080/1280x720/640x480/640x360/352x288/352x240
H.264 : 3840x2160/2560x1440/1920x1080/1280x720/640x480/640x360/352x288/352x240
MJPEG : 1920x1080/1280x720/800x600/768x432/704x576/704x480/640x480/640x360/352x288/352x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
3840x2160p30 + 480p30 with H.264,H265 + MJPEG
Video BitRate Yes
Bitrate Control Multi Streaming CBR/VBR at H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711
Special Feature
Dynamic ROI(Region of Interest)
Smart LBR
I/O & Event
Audio In / Out 1[1.0Vms, 3K ohm]/1
Alarm In / Out 1/1
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45(1000Base-T(1Gbps))
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
SIP/VoIP Support
SIP
VoIP
Application Programming I/F
CGI API
ONVIF
Web viewer
Windows®
Internet Explorer®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC12V Max
    8.9W
  2. PoE Max
    12.3W
Environmental
Operating Temperature -20℃ ~ 50℃
Operating Humidity 10-90% RH(Non-Condensing)
IP Rating IP67
Other Certification
FCC
CE
ROHS
UL
Mechanical
Housing Model SF1
Housing
  1. Outdoor
  2. Fisheye
    Bullet
    Specialty
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
222.5mm
96.7mm
Weight
0.97kg

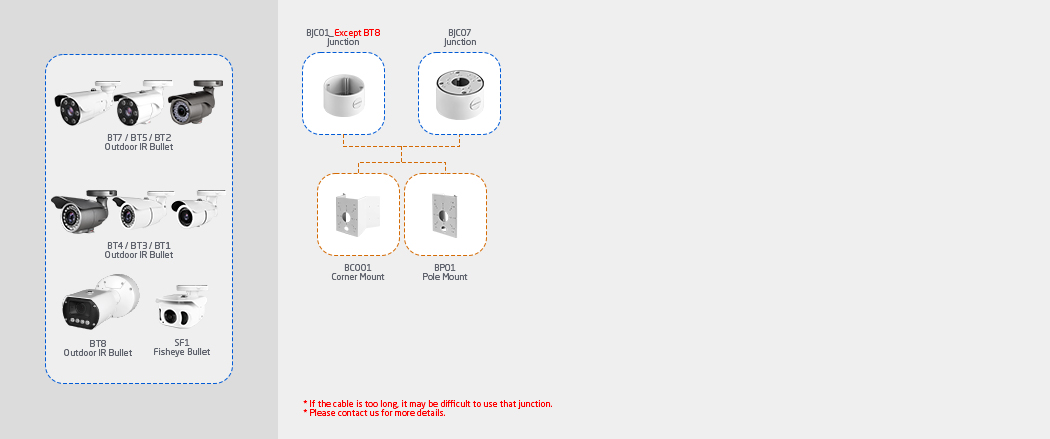

Compatible Accessories

Bracket Matching

Download

PR

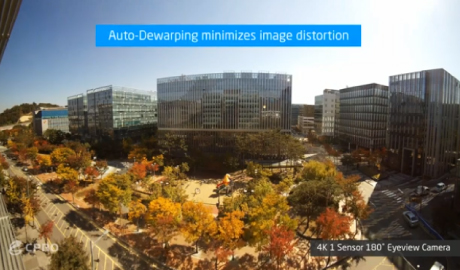

  • VIDEO
    1 Sensor Panoramic
