Network Cameras

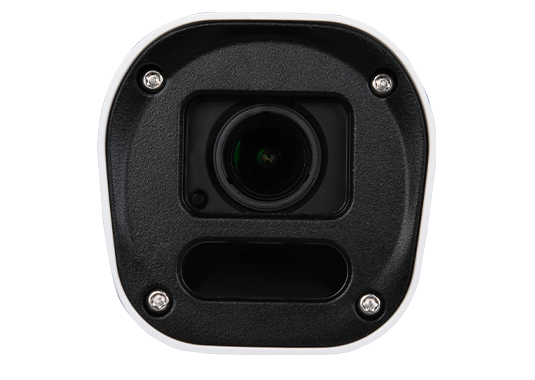

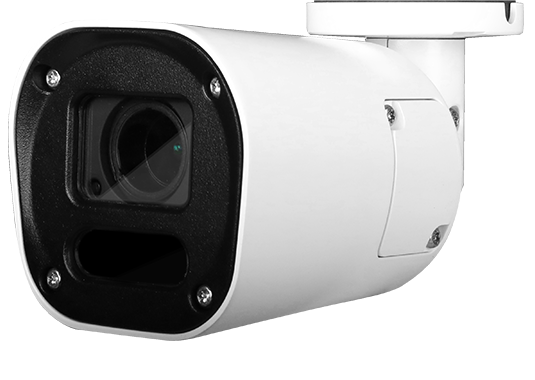

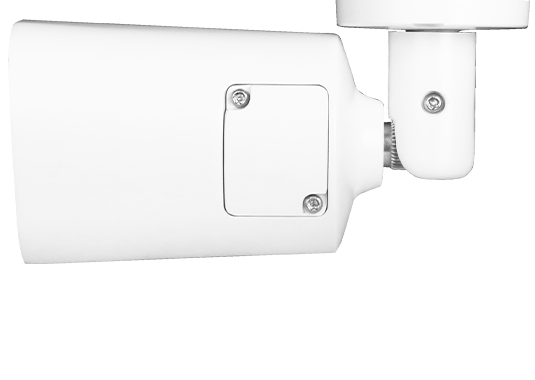

NBT6-E5L-R
AI 5M IP MFZ IR Bullet
Edge based
AI camera
H3IR
IR Leds
X4.4
Optical Zoom

Key Feature

  • 5MP AI Camera
  • Supports Intelligent Video Analysis Events (Intrusion, Dwell, Counting Line)
  • Maximum Resolution 2592 (Horizontal) X 1944 (Vertical) / 30fps
  • Horizontal Field of View 100 degrees (Wide) ~ 22 degrees (Zoom)
  • 4.4x Optical Zoom
  • Day & Night(ICR)/Night Vision up to 50 meters
  • Backlight Compensation (WDR)
  • SD/SDHC/SDXC Memory Slot
  • PoE IEEE 802.3af/Class3
  • IP67

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 5.17M(STV2)
  3. CMOS
Channels
1
Total Pixel 2608(H) X 1984(V)
Max Resolution 2592(H) X 1944(V)
MIN. Illumination
COLOR: 0.04Lux
BW: 0Lux with IR
Only installer Video Output 1 [CVBS 1.0V p-p (75Ω)]
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
3.3~14.5mm
Aperture
F1.4
Lens Type Motorized_Varifocal
IRIS Type Auto Exposure
Horizontal Angle
D:28°~128°, H:22°~100°, V:17°~71°
Pan / Tilt / Zoom
Zoom : X4.4 Optical
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
LEDs H3IR
LED Distance 164ft(50m)
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Auto White Balance
Intelligent Video Analytic
AI Intelligent Video Analytic Yes
Video analytics
Intrusion Detection
Dwell Filter
Counting Lines
Metadata
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 2592x1944/2560x1440/1920x1080/1280x720/800x600/704x576/704x480/640x480/640x360/352x288/352x240, 30fps
H.264 : 2592x1944/2560x1440/1920x1080/1280x720/800x600/704x576/704x480/640x480/640x360/352x288/352x240, 30fps
MJPEG : 1280x720/800x600/768x432/704x576/704x480/640x480/640x360/352x288/352x240, 15fps
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~25Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711 ulaw
Special Feature
Dynamic ROI(Region of Interest)
I/O & Event
Audio In / Out 1 Line Input[1.0Vrms, 3K ohm]/1 Line Output
Alarm In / Out 1 Line/1 Line
Mic No
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Vietnamese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC Max TBD
  2. PoE Max TBD
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing IK10
IP Rating IP67
Other Certification
FCC
CE
ROHS
UL
Mechanical
Housing Model BT6
Housing
  1. Outdoor
  2. Bullet
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
197.5mm
86mm
Weight
0.97kg

Compatible Accessories

Download

  • NBT6-E5L-R

    AI 5M IP MFZ IR Bullet

    Type File name Last update Download
    Drawing BT6 DRAWING.PDF 2025-07-25
    Product Image BT6_MFZ.PNG 2025-07-15
