Network Cameras
CPRO-FN-5016

Key Feature

  • ** HD-NVR(PoE) **

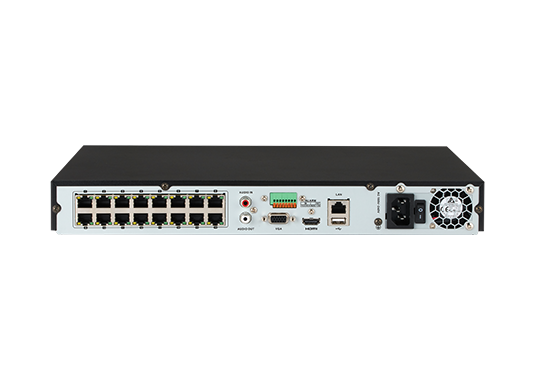

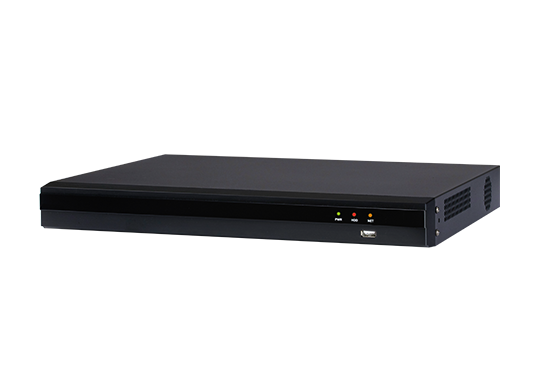

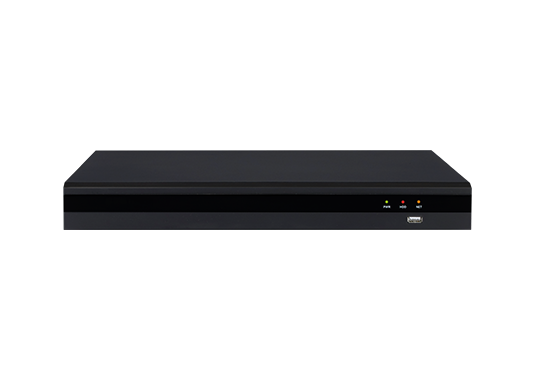

    HD-NVR With Built-in PoE(16ch)

    * Features :
    Plug & Play with Built-in PoE (Max. 16ch)
    IEEE 802.3 at : Auto Power Distribution to each PoE Port(Max. 30W/PoE Port)
    ONVIF Compatible & Auto IP Camera Detection/Registration
    Intelligent Dual(Main & Sub) Stream Recording/Display
    System Performance Monitoring (Bandwidth & Network Status, etc.)
    P2P Function that doesn’t require Port Forwarding
    iSCSI function Support – External HDD through Network
    Smart Search – Multiple search by time & minutes’ base
    Link Local (Zero Configuration) Supports
    H.264 & H.265 Supports


    * Specifications :
    Max HDD : 2x SATA HDD
    Video out : Composite & HDMI(Max UHD) & VGA
    Recording Speed : 480fps
    Audio Input/Output : 1ch / 1ch
    Alarm Input/Output : 4ch / 1ch
    LAN : 1EA Gigabit Ethernet(RJ45)-Foxed IP, DHCP & DDNS
    Network Bandwidth(Max) : 80Mbps
    System operating Power : 110~240V AC(180W)
    Dimension(WxDxH) : 385 x 315 x 52 mm(~1.2U)

Specifications

PDF
Mechanical
Housing Model none
