Network Cameras
NBI2-45-R
DWC-MPB75Wi4T

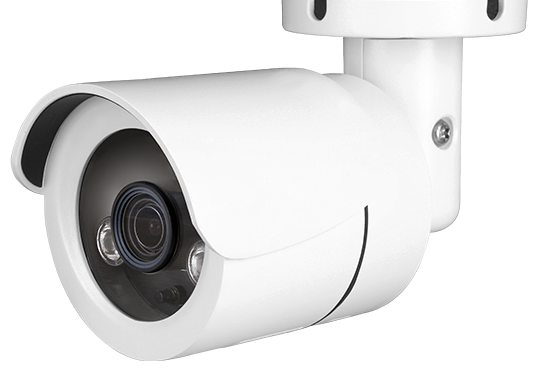

5M IP IR MIni Bullet
5 MP
Image Resolution
H2IR
IR Leds
Mini size
Bullet

Key Feature

  • 5MP miniature camera
  • Maximum resolution 2592 (horizontal) X 1944 (vertical) / 30fps
  • Horizontal angle of view 82 degrees (4.0mm) / Fixed lens options
  • Day & Night (ICR) / IR reach distance 21 meters
  • Backlight compensation (WDR)
  • SD/SDHC/SDXC memory slot
  • PoE IEEE 802.3af/Class3
  • IP67

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 5.69M
  3. CMOS
Channels
1
Total Pixel 2704(H) X 2104(V)
Max Resolution 2592(H) X 1944(V)
MIN. Illumination
0.16Lux
0Lux with IR (F2.0)
Only installer Video Output No
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
4.0mm
Aperture
F2.0
Lens Type Fixed
IRIS Type Auto Exposure
Horizontal Angle
D:106.6°, H:82.3°, V:58.8°
Pan / Tilt / Zoom
Zoom : Fixed
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
LEDs H2IR
LED Distance 70ft(22m)
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic No
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 2592x1944/2560x1440/2304x1296/1920x1080/1280x720/704x480/640x480/352x288/352x240
H.264 : 2592x1944/2560x1440/2304x1296/1920x1080/1280x720/704x480/640x480/352x288/352x240
MJPEG : 1920x1080/1280x720/800x600/768x432/704x576/704x480/640x480/352x288/352x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~10Mbps
Bitrate Control Multi Streaming CBR/VBR at H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression No
Special Feature
Dynamic ROI(Region of Interest)
I/O & Event
Audio In / Out No
Alarm In / Out No
Mic No
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Event Notification
FTP
E-Mail
SD Card
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC Max 6.5W
  2. PoE Max 8.3W
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing No
IP Rating IP67
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model BI2
Housing
  1. Outdoor
  2. Bullet
Material Aluminum-Die Casting

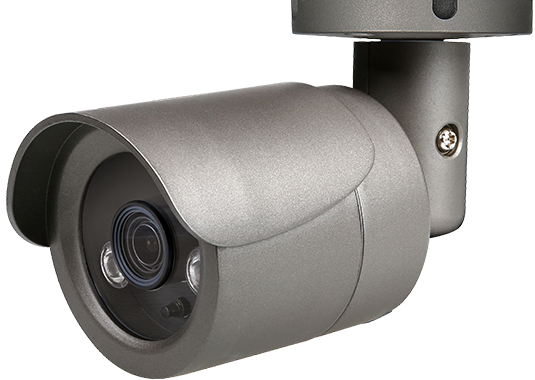

Color Dark Gray
Dimensions (W x D x H)
160.5mm
67.5mm
Weight
0.5kg

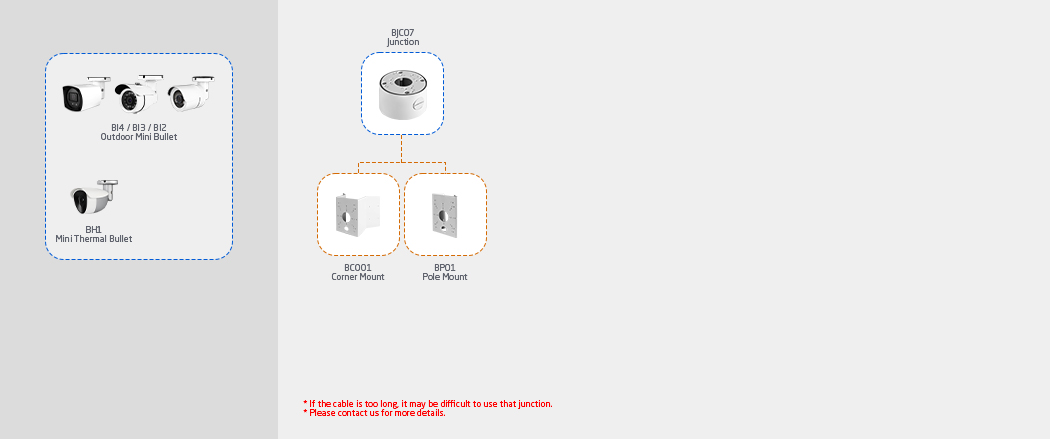

Compatible Accessories

Bracket Matching
