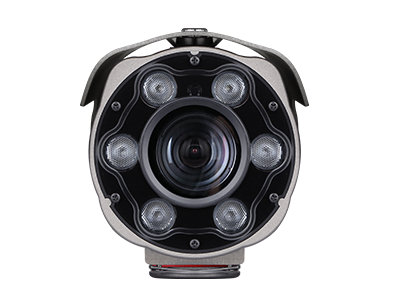

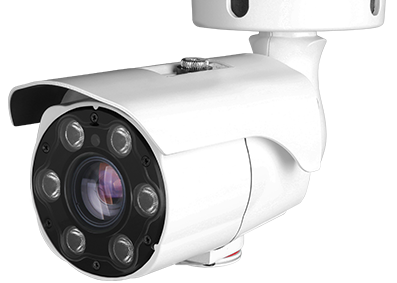

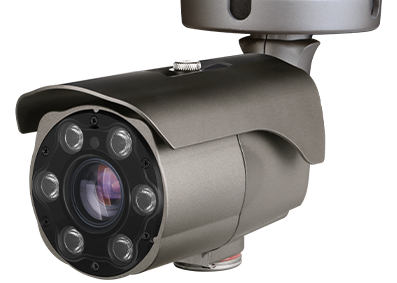

Network Cameras
NBT5-22-R
2M IP MFZ IR Bullet
2 MP
Image Resolution
H6IR
IR Leds
4.2X
Optical Zoom

Key Feature

  • 2MP camera
  • Maximum resolution 1920 (horizontal) X 1080 (vertical) / 30fps
  • Horizontal angle of view 96 degrees (wide angle) to 35 degrees (zoom) / Optical 4.2x
  • Day & Night (ICR) / IR reach distance 31 meters
  • Backlight compensation (WDR)
  • SD/SDHC/SDXC memory slot
  • PoE IEEE 802.3af/Class3
  • IP67/IK09

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 2.1M
  3. CMOS
Channels
1
Total Pixel 1945(H) X 1109(V)
Max Resolution 1920(H) X 1080(V)
MIN. Illumination
0.02Lux
0Lux with IR (F1.4)
Only installer Video Output 1 [CVBS 1.0V p-p (75Ω)]
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
2.8~12mm
Aperture
F1.4
Lens Type Motorized_Varifocal
IRIS Type P-IRIS
Horizontal Angle
D:41°~113°, H:35°~96°, V:20°~51°
Pan / Tilt / Zoom
Zoom : X4.2 Optical
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
LEDs H6IR
LED Distance 100ft(31m)
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic No
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 1920x1080/1280x720/704x576/704x480/640x480/352x288/352x240
H.264 : 1920x1080/1280x720/704x576/704x480/640x480/352x288/352x240
MJPEG : 1920x1080/1280x720/800x600/768x432/704x576/704x480/640x480/640x360/352x288/352x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~10Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711 ulaw
Special Feature
Dynamic ROI(Region of Interest)
I/O & Event
Audio In / Out 1 Line Input[1.0Vrms, 3K ohm]/1 Line Output
Alarm In / Out 1 Line/1 Line
Mic No
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
Application Programming I/F
CGI API
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC Max 8.9W(12VDC 0.74A)
  2. PoE Max 10.3W(48VDC 0.22A)
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start -40℃
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing IK09
IP Rating IP67
Other Certification
FCC
CE
ROHS
KC
Mechanical
Housing Model BT5
Housing
  1. Outdoor
  2. Bullet
Material Aluminum-Die Casting
Color Dark Gray
Dimensions (W x D x H)
247.2mm
96.7mm
Weight
0.9kg

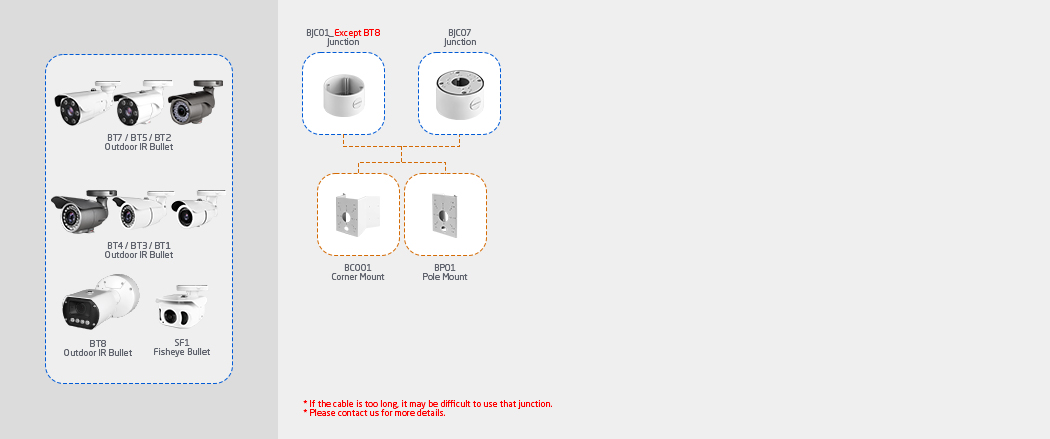

Compatible Accessories

Bracket Matching
