Network Cameras

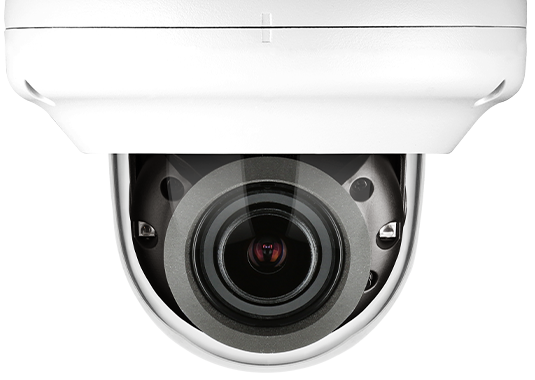

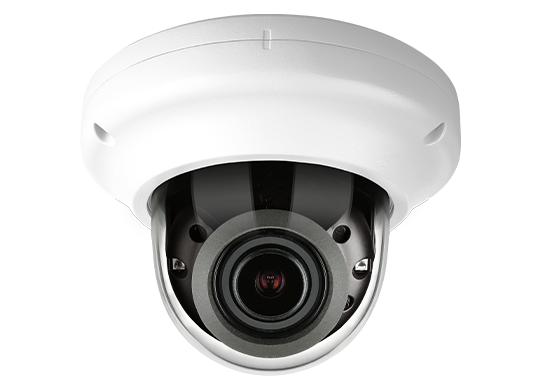

NVD13-58-R
4K IP IR Flat Dome
4K
Image Resolution
H2IR
IR Leds
5X
Optical Zoom

Key Feature

  • Weather Proof Design
  • Water Proof Cable
  • Optimized Multiple Profile Streaming
  • ROI(Region of Interest)
  • Various Web Plug-in
  • Smart AVC
  • Advanced Built in ISP
  • Double Scan Sensor with Advanced Built in ISP (8M)
  • Two motor MFZ(Motorized Focus Controllable) / P-Iris Lens

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 8.6M
  3. CMOS
Channels
1
Total Pixel 3864(H) X 2228(V)
Max Resolution 3840(H) X 2160(V)
MIN. Illumination
0.09Lux
0Lux with IR (F1.4)
Only installer Video Output 1 [CVBS 1.0V p-p (75Ω)]
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
2.7~13.5mm
Aperture
F1.4
Lens Type Motorized_Varifocal
IRIS Type P-IRIS
Horizontal Angle
D:38.2°~105.0°, H:33.1°~90.3°, V:18.9°~49.0°
Pan / Tilt / Zoom
Zoom : X5 Optical
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) Auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
LEDs H2IR
LED Distance 70ft(22m)
Privacy Zone Yes
Function
Motion-Detection
Mirror&Flip
Intelligent Video Analytic
AI Intelligent Video Analytic No
Encoder (video & audio)
Video Compression
H.264
H.265
MJPEG
Support Resolution
H.265 : 3840x2160/2560x1440/1920x1080/1280x720/640x480/640x360/352x288/352x240
H.264 : 3840x2160/2560x1440/1920x1080/1280x720/640x480/640x360/352x288/352x240
MJPEG : 1920x1080/1280x720/800x600/768x432/704x576/704x480/640x480/640x360/352x288/352x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~25Mbps
Bitrate Control Multi Streaming CBR/VBR at H.264,H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711 ulaw
Special Feature
Dynamic ROI(Region of Interest)
Smart LBR
I/O & Event
Audio In / Out 1 Line Input[1.0Vrms, 3K ohm]/1 Line Output
Alarm In / Out 1 Line/1 Line
Mic No
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45(1000Base-T(1Gbps))
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC Max 9W
  2. PoE Max 11.52W
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing IK10
IP Rating IP67
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model VD13
Housing
  1. Outdoor
  2. Dome
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
125mm
92mm
Weight
0.52kg

Compatible Accessories

Bracket Matching
