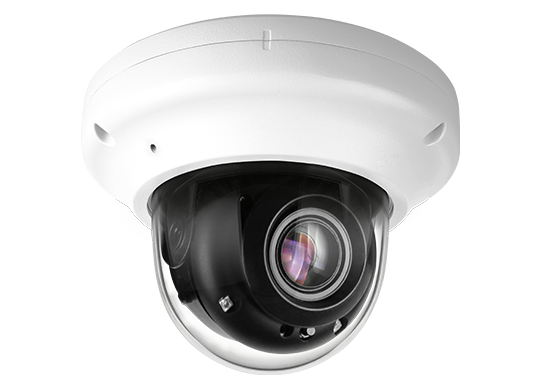

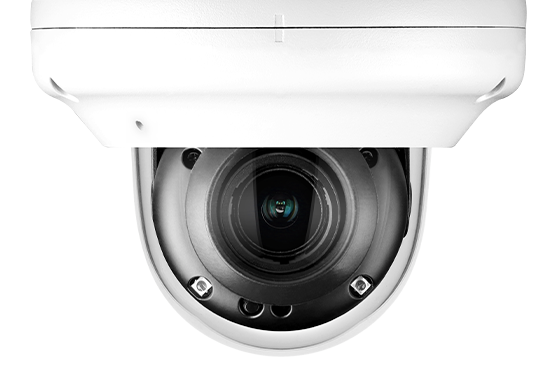

NVD13-78-R
AI 4K IP IR Flat Dome
Edge based
AI camera
H2IR
IR Leds
5X
Optical Zoom

Key Feature

  • AI Deep Learning Filter
  • AI Deep Learning VCA Edge
  • Weather Proof Design
  • Water Proof Cable
  • Optimized Multiple Profile Streaming
  • ROI(Region of Interest)
  • Advanced Built in ISP
  • Fluid Integration Way
  • Double Scan Sensor with Advanced Built in ISP (8M)
  • Two motor MFZ(Motorized Focus Controllable) / P-Iris lens

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 8M
  3. CMOS
Channels
1
Total Pixel 3864(H) X 2228(V)
Max Resolution 3840(H) X 2160(V)
MIN. Illumination
0.09Lux
0Lux with IR (F1.4)
Only installer Video Output 1 [CVBS 1.0V p-p (75Ω)]
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
2.7~13.5mm
Aperture
F1.4
Lens Type Motorized
IRIS Type P-IRIS
Horizontal Angle
D:38.2°~105.0°, H:33.1°~90.3°, V:18.9°~49.0
Pan / Tilt / Zoom
Pan:
Tilt :
Zoom : X5 Optical
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
IR LEDs H2IR
IR Distance 70ft
Privacy Zone Yes
Function
Motion Detection
Mirror & Flip
Intelligent Video Analytic
AI Intelligent Video Analytic Yes
VCA Pro AI
Zones&lines
Tamper Detection
Intrusion Detection
Counting
Counting Lines
Appear Filter
Disappear Filter
Stopped Filter
Enter Filter
Exit Filter
Tailgating Filter
Abandoned Object Filter
Dwell Filter
Logical Rules
Direction Filter
DL People Tracker
DL Object Tracker
Color Filter
Removed Object Filter
Encoder (video & audio)
Video Compression
H.265
H.264
MJPEG
Support Resolution
H.265 : 3840x2160/2592x1944/2560x1440/1920x1080/1280x720/640x480/640x360/352x288/352x240
H.264 : 3840x2160/2592x1944/2560x1440/1920x1080/1280x720/640x480/640x360/352x288/352x240
MJPEG : 1920x1080/1280x720/800x600/768x432/704x576/704x480/640x480/640x360/352x288/352x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~25Mbps
Bitrate Control Multi Streaming CBR/VBR at H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711
Special Feature
Dynamic ROI(Region of Interest)
I/O & Event
Audio In / Out 1[1.0Vms, 3K ohm]/1
Alarm In / Out 1/1
Mic No
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45(1000Base-T(1Gbps))
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Internet Explorer®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. PoE IEEE 802.3af
  3. Class3
Power consumption
  1. DC Max 10.2W
  2. PoE Max 12.5W
Environmental
Operating Temperature -20℃ ~ 50℃
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing IK10
IP Rating IP67
Other Certification
FCC
CE
ROHS
UL
Mechanical
Housing Model VD13
Housing
  1. Outdoor
  2. Dome
Material Aluminum-Die Casting
Color White
Dimensions (W x D x H)
125mm
92mm
Weight
0.52kg
