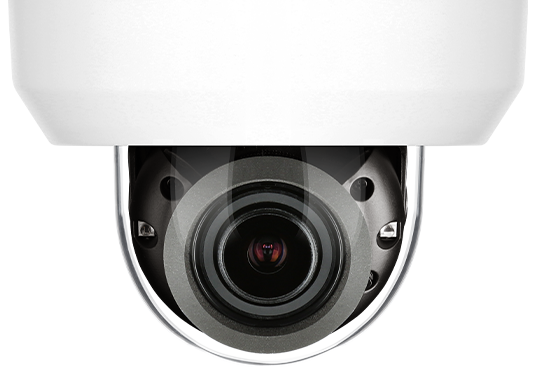

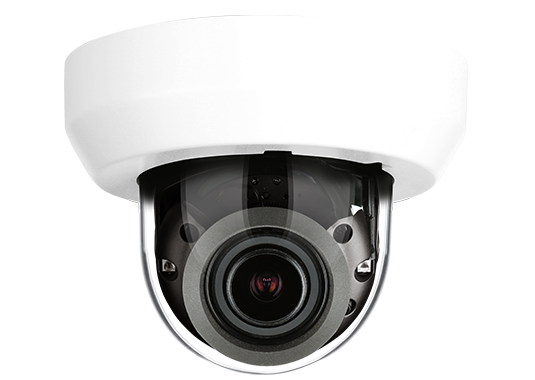

NNK5-45-R
5M IP Indoor IR Dome
5 MP
Image Resolution
H2IR
IR Leds
Cold Start
Temperature

Key Feature

  • 90° Tilting
  • Real-time High Definition Camera
  • Local SD Card Backup
  • PoE
  • Two Motor MFZ(Motorized Focus Controllable) / P-Iris Lens
  • Day & Night by ICR
  • Triple Codec, Simultaneous Multi Streaming
  • Smart Focus(Motorized focus)
  • Double Scan Sensor with Advanced Built in ISP (5M)

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 5.14M
  3. CMOS
Channels
1
Total Pixel 2592(H) X 1944(V)
Max Resolution 2592 x 1944
MIN. Illumination
0.08Lux, 0Lux with IR (F1.4)
Only installer Video Output 1 [CVBS 1.0V p-p (75Ω)]
S/N(signal/noise) Ratio 50dB
Scanning Mode Progressive Scan
Lens
Focal Length
2.7~13.5mm
Aperture
F1.4
Lens Type Motorized
IRIS Type P-IRIS
Horizontal Angle
D:39°~125°, H:31°~96°, V:24°~70°
Pan / Tilt / Zoom
Pan:
Tilt :
Zoom : X5 Optical
Operational
Shutter Speed
Auto / Manual (1/15 ~ 1/32000)
Anti-Flicker
Slow Shutter(1/2,1/3,1/5,1/6,1/7.5, 1/10)
Auto Gain Control (AGC) auto
Day & Night TDN (True Day & Night)
Digital Noise Reduction 3D DNR
Wide Dynamic Range (WDR) WDR(2x)
Dynamic Range 120dB or above
IR LEDs H2IR
IR Distance 70ft
Privacy Zone Yes
Function
Motion Detection
Digital Stabilization
Mirror & Flip
Intelligent Video Analytic
AI Intelligent Video Analytic No
Encoder (video & audio)
Video Compression
H.265
H.264
MJPEG
Support Resolution
H.265 : 2592x1944/2560x1440/2304x1296/1920x1080/1280x720/704x480/640x480/352x288/352x240
H.264 : 2592x1944/2560x1440/2304x1296/1920x1080/1280x720/704x480/640x480/352x288/352x240
MJPEG :
1920x1080/1280x720/800x600/768x432/704x576/704x480/640x480/352x288/352x240
Intelligent Codec Yes
Multiple Profile Streaming Performance
Triple Streaming(3rd Only MJPEG)
Video BitRate 100Kbps~10Mbps
Bitrate Control Multi Streaming CBR/VBR at H.265 (Controllable frame rate and Bandwidth)
Video Bitrate extra comment Multi-rate for Preview and Recording
Audio Compression G.711
Special Feature
Dynamic ROI(Region of Interest)
Smart LBR
I/O & Event
Audio In / Out 1[1.0Vms, 3K ohm]/1
Alarm In / Out 1/1
Mic No
Event Trigger
Motion Alarm
Network Disconnection
Temperature Critical
Illegal Login
Schedule
Sensor Detection
Event Notification
FTP
E-Mail
Alarm Out
SD Card
Network
Ethernet RJ45 (10/100Base-T)
Protocol
TCP/IP
UDP
AutoIP
RTP(UDP/TCP)
RTSP
NTP
HTTP
HTTPS
SSL
DNS
DDNS
DHCP
FTP
SMTP
ICMP
SNMPv1/v2/v3(MIB-2)
ONVIF
Security
HTTPS(SSL)
IP filtering
802.1x
Digest Authentication
Application Programming I/F
CGI API
ONVIF
Web viewer
MS Edge®
Internet Explorer®
Google Chrome®
Video management software (VMS) DW Spectrum® IPVMS
Support languages
English
Korean
Japanese
Edge storage
Micro SD
Micro SDHC
Micro SDXC
SD Card Socket 1
Electrical
Power Requirement
  1. Adaptor is not included
  2. DC12V
  3. PoE IEEE 802.3af
  4. Class3
Power consumption
  1. DC Max 8.3W
  2. PoE Max 10.5W
Environmental
Cold Start -40℃~ 50℃
Operating Humidity 10-90% RH(Non-Condensing)
Vandal Proof Casing No
IP Rating No
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model NK5
Housing
  1. Indoor
  2. Dome
Material Plastic
Color White
Dimensions (W x D x H)
120mm
92.4mm
Weight
0.3kg

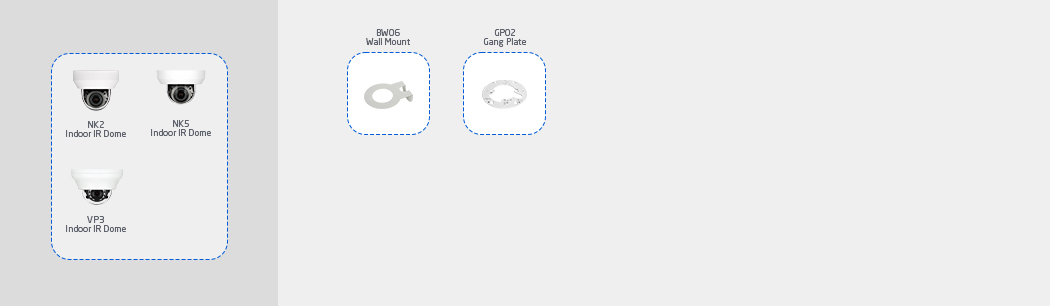

Bracket Matching
