Analog Cameras

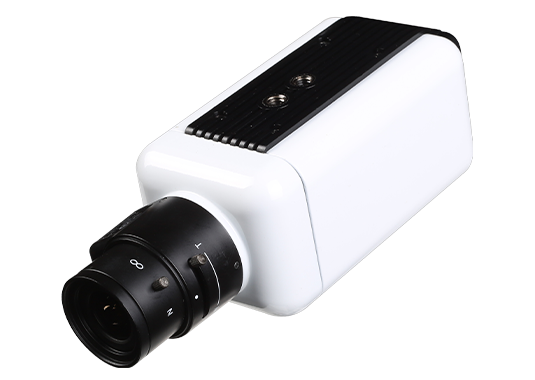

CCB3-12
2M HD Analog Box
2 MP
Image Resolution
Box
Case Type
Universal
Video Output

Key Feature

  • Analog High Definition Universal over Coax Technology
  • Analog High Definition Universal over UTP Technology
  • Sens-up Super Low Light Technology
  • 1/3" CMOS Sensor
  • 1080P Resolution at 30fps
  • Wide Dynamic Range (WDR)
  • Smart DNR™ 3D Digital Noise Reduction
  • Highlight Masking Exposure (HME)
  • True Day/Night Mechanical IR Cut Filter
  • Test Video-BNC Output
  • Easy Icon Driven OSD Menu with Built-in Joystick
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Back Light Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • OSD Control via Coax Cable using UTC
  • RS485

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 2M
  3. CMOS
Num of Channels
1
Total Pixel 1945(H) x 1109(V)
Active Pixel 1937(H) x 1097(V)
Max Resolution 1920 X 1080
Video Output
AHD or TVI or CVI or CVBS
Only installer Video Output No
Signal Technology Max 2M Megapixel Universal
Synchronization Internal
Scanning Mode Progressive Scan
Lens
Lens Type C / CS Mount
IRIS Type Manual / DC Auto Iris
Operational
Shutter Speed
1/30(25) - 1/30,000
Slow Shutter (OFF-x32)
Auto Gain Control (AGC) Yes
Day & Night TDN (True Day & Night)
Digital Noise Reduction 2D/3D DNR
Wide Dynamic Range (WDR) Double Scan WDR
Dynamic Range 120dB or above
Gamma
0.5
Function
Motion Detection
Privacy Zone
White Balance Backlight
Mirror & Flip
I/O & EVENT
Audio In / Out No
Alarm In / Out 0/1
RS485 PELCO D
UTC Built-in UTC
UTP Built-in No
Electrical
Power Requirement DC12V / AC24V Dual Voltage
  1. DC12V
    AC24V
Power consumption
DC(LED OFF) : 2.45W (200mA)
AC(LED OFF) : 2.4W (142mA)
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity Less than 90%(Non-Condensing)
IK Rating No
IP Rating No
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model
CB3
Housing
  1. Indoor
  2. Box
Material Plastic
Color White
Dimensions (W x D x H)
58.8mm
119.7
62mm
Weight
0.25

Compatible Accessories

Download

  • CCB3-12

    2M HD Analog Box

    Type File name Last update Download
    Drawing CB3 DRAWING.PDF 2022-08-17
    Product Image CB3.JPG 2022-08-17
