Analog Cameras
CVD4-25-R
DWC-MC553WTIR

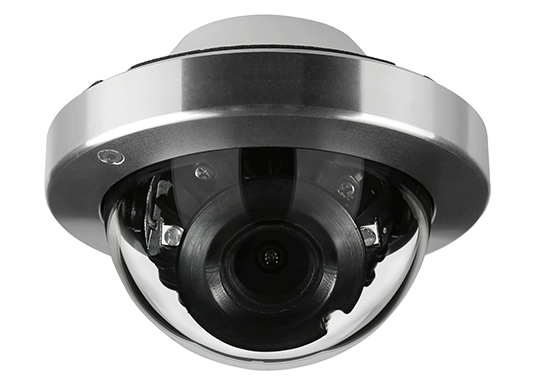

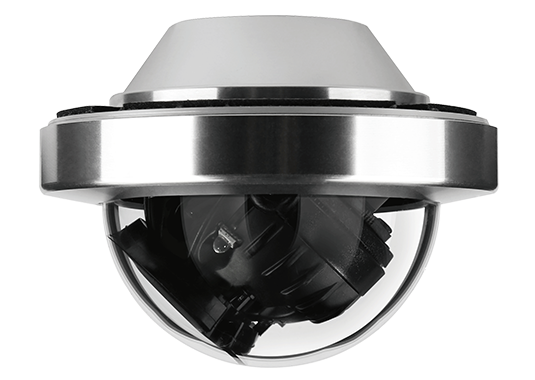

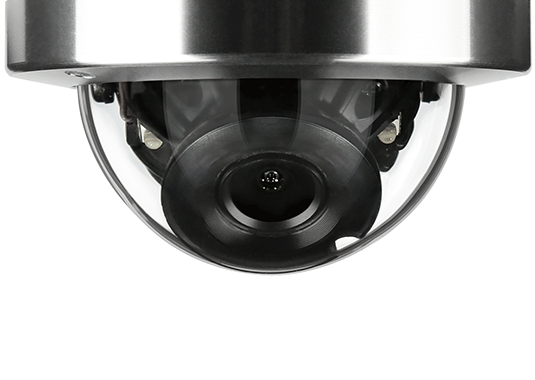

5M HD Analog IR Micro CR Dome
5 MP
Image Resolution
H2IR
IR Leds
Micro Size
Case Type

Key Feature

  • Analog High Definition Universal over Coax Technology
  • Sens-up Super Low Light Technology
  • 1/2.8" CMOS Sensor
  • Max 1944P Resolution at 12.5/20fps
  • Wide Dynamic Range (WDR)
  • Board Fixed type Lens
  • Smart IR™ with Intelligent Camera Sync. 50ft Range
  • Smart DNR™ 3D Digital Noise Reduction
  • Highlight Masking Exposure (HME)
  • True Day/Night Mechanical IR Cut Filter
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Back Light Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • IP66 Certified (Weather Resistant)
  • OSD Control via Coax Cable using UTC

Specifications

PDF
Video
Image Sensor
  1. 1/2.8”
  2. 5M
  3. CMOS
Num of Channels
1
Total Pixel 2704(H) x 2104(V)
Active Pixel 2608(H) x 1960(V)
Max Resolution 2592 x 1944
MIN. Illumination
Color(at Day) : 0.16Lux (F2.0, 30IRE)
B/W(at Night) : 0 lux(With IR)
Video Output
AHD or TVI or CVI or CVBS
Only installer Video Output No
Signal Technology Max 5M Megapixel Universal
Synchronization Internal
Scanning Mode Progressive Scan
Lens
Focal Length
4.0mm
Aperture
F2.0
Lens Type Fixed
IRIS Type Auto Exposure
Horizontal Angle
D:106°, H:82°, V:60°
Operational
Shutter Speed
1/30(25) - 1/30,000
Slow Shutter (OFF-x32)
Auto Gain Control (AGC) Yes
Day & Night TDN (True Day & Night)
Digital Noise Reduction 2D/3D DNR
Wide Dynamic Range (WDR) Double Scan WDR
Dynamic Range 120dB or above
LEDs H2IR
LED Distance
50ft
Gamma
0.5
Function
Motion Detection
Privacy Zone
White Balance Backlight
Mirror & Flip
I/O & EVENT
Audio In / Out No
Alarm In / Out No
UTC Built-in UTC
UTP Built-in No
Electrical
Power Requirement DC12V Voltage
  1. DC12V
Power consumption
DC(LED OFF) : 2W (176mA)
DC(LED ON) : 2.69W (224mA)
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity Less than 90%(Non-Condensing)
IP Rating IP66
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model
VD4
Housing
  1. Outdoor
  2. Dome
Material Aluminum-Die Casting
Dimensions (W x D x H)
80mm
87.5mm
Weight
0.26

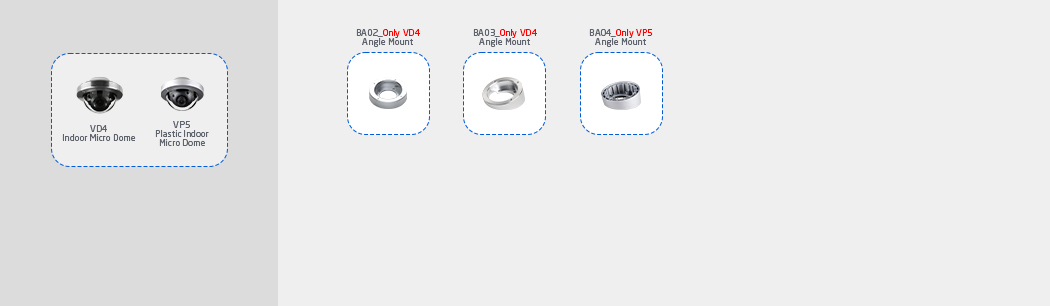

Compatible Accessories

Bracket Matching

Download

  • CVD4-25-R

    5M HD Analog IR Micro CR Dome

    Type File name Last update Download
    Drawing VD4 DRAWING.PDF 2022-08-17
    Product Image VD4.JPG 2022-08-17
