CNK2-28-RS

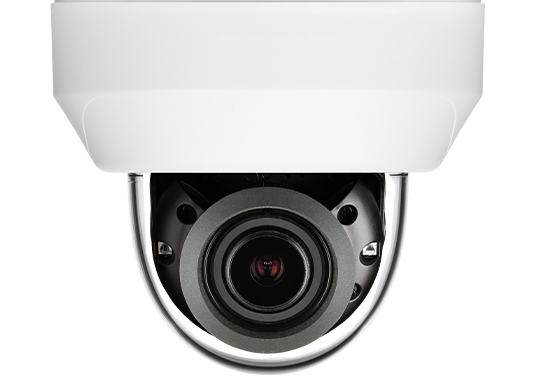

8M HD Analog IR Indoor Dome
8 MP
Image Resolution
H2IR
IR Leds
Universal
Video Output

Key Feature

  • Analog High Definition Universal over Coax Technology
  • Starlight Super Low Light Technology
  • 1/1.8" CMOS Sensor
  • Max 2160P Resolution at 15/12.5fps
  • Wide Dynamic Range (WDR)
  • MFZ P-Iris Lens from 3.6~10mm
  • Smart IR™ with Intelligent Camera Sync. 70ft Range
  • Smart DNR™ 3D Digital Noise Reduction
  • Highlight Masking Exposure (HME)
  • True Day/Night Mechanical IR Cut Filter
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Back Light Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • OSD Control via Coax Cable using UTC

Specifications

PDF
Video
Image Sensor
  1. 1/1.8”
  2. 8M
  3. CMOS
Num of Channels
1
Total Pixel 3952(H) x 2320(V)
Active Pixel 3864(H) x 2176(V)
Max Resolution 3840(H) x 2160(V)
MIN. Illumination
Color(at Day) : 0.09Lux (F1.5, 30IRE)
B/W(at Night) : 0 lux(With IR)
Video Output
AHD or TVI or CVI or CVBS
Only installer Video Output CVBS
Signal Technology Max 8.0 Megapixel Universal
Synchronization Internal
Scanning Mode Progressive Scan
Lens
Focal Length
3.6~10mm
Aperture
F1.5
Lens Type Motorized
IRIS Type P-IRIS
Horizontal Angle
D:112.9°, H:98.4°, V:54.6°(Wide) D:52.3°, H:45.7°, V:25.9°(Tele)
Operational
Shutter Speed
1/30(25) - 1/30,000
Slow Shutter (OFF-x32)
Auto Gain Control (AGC) Yes
Day & Night TDN (True Day & Night)
Digital Noise Reduction 2D/3D DNR
Wide Dynamic Range (WDR) LINE WDR
Dynamic Range 120dB or above
LEDs H2IR
LED Distance
70ft
Gamma
0.5
Function
Motion Detection
Privacy Zone
White Balance Backlight
Mirror & Flip
I/O & EVENT
Audio In / Out No
Alarm In / Out No
UTC Built-in UTC
UTP Built-in No
Electrical
Power Requirement DC12V / AC24V Dual Voltage
  1. DC12V
    AC24V
Power consumption
DC(LED OFF) : 5.517W (460mA)
DC(LED ON) : 8.98W (748mA)
AC(LED OFF) : 5.06W (358mA)
AC(LED ON) : 8.03W (552mA)
Environmental
Operating Temperature -20℃ ~ 50℃
Cold Start No
Operating Humidity Less than 90%(Non-Condensing)
IK Rating No
IP Rating No
Other Certification
FCC
CE
ROHS
Mechanical
Housing Model
NK2
Housing
  1. Indoor
  2. Dome
Material Plastic
Color White
Dimensions (W x D x H)
107.8mm
99.1mm
Weight
0.24

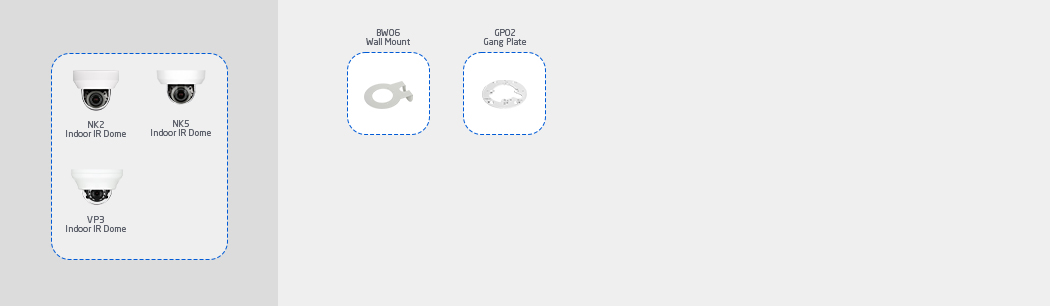

Compatible Accessories

Bracket Matching

Download

  • CNK2-28-RS

    8M HD Analog IR Indoor Dome

    Type File name Last update Download
    Product Image NK2.JPG 2022-08-17
    Drawing NK2 DRAWING.PDF 2022-08-17
